Perform a trigonometric function.
Library
Description
The Trigonometric Function block performs numerous common trigonometric functions.
You can select one of these functions from the Function list: sin, cos, tan, asin, acos, atan, atan2, sinh, cosh, and tanh. The block output is the result of the function operating on the input or inputs.
The name of the function appears on the block icon. Simulink automatically draws the appropriate number of input ports. The block accepts and outputs real or complex signals of type double.
Use the Trigonometric Function block instead of the Fcn block when you want dimensionalized output because the Fcn block can produce only scalar output.
Data Type Support
A Trigonometric Function block accepts and outputs real or complex signals of type double.

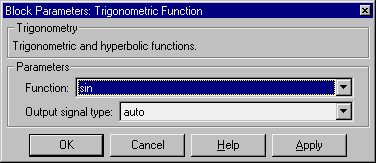

Parameters and Dialog Box
Characteristics
| Direct Feedthrough |
Yes |
| Sample Time |
Inherited from driving block |
| Scalar Expansion |
Of the input when the function requires two inputs |
| Dimensionalized |
Yes |
| Zero Crossing |
No |
