Real-Imag to Complex

Convert a magnitude and/or a phase angle signal to a complex signal.

Library

Math

Description

The Real-Imag to Complex block converts real and/or imaginary inputs to a complex-valued output signal.

The inputs may be both arrays (vectors or matrices) of equal dimensions, or one input may be an array and the other a scalar. If the block has an array input, the output is a complex array of the same dimensions. The elements of the real input are mapped to real parts of the corresponding complex output elements. The imaginary input is similarly mapped to the imaginary parts of the complex output signals. If one input is a scalar, it is mapped to the corresponding component (real or imaginary) of all the complex output signals.

The input signals and real or imaginary output parameter can be of any data type. The output is of the same type as the input or parameter that determines the output.

Data Type Support

See description above.

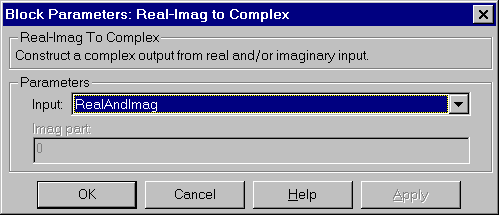

Parameters and Dialog Box

Input

Specifies the kind of input: a real input, an imaginary input, or both.

Real (Imag) part

If the input is a real-part signal, this parameter specifies the constant imaginary part of the output signal. If the input is the imaginary part, this parameter specifies the constant real part of the output signal. Note that the title of this field changes to reflect its usage.

Characteristics

Direct Feedthrough	Yes
Sample Time	Inherited from driving block
Scalar Expansion	Of the input when the function requires two inputs
Dimensionalized	Yes
Zero Crossing	No
