Sum (Using Simulink)

Output the sum of inputs.

Library

Math

Description

The Sum block adds scalar, vector, or matrix inputs or the elements of a single vector input. The following rules determine the block's output:

If the block has more than one input, all nonscalar inputs must be of the same dimensionality and dimensions, that is, either all vectors or all matrices of the same dimensions. For example, if any input is a 2-by-2 matrix, any other input must be a 2-by-2 matrix or a scalar.

If any input is a scalar, it is expanded to have the same dimensions as the nonscalar inputs. For example, if the nonscalar inputs are 2-by-2 matrices, the scalar inputs are expanded to be 2-by-2 matrices.

The output has the same dimensions as the inputs (after scalar expansion) and each element is the sum of the corresponding elements of the inputs. In other words, the output is the element-wise sum of the inputs.

If the block has only one input, it must be either a scalar or a vector. If the input is a vector, the output is a scalar equal to the sum of the elements of the input vector.

Note Simulink hides the name of a Sum block when you copy it from the Simulink block library to a model.

Data Type Support

The Sum block accepts real- or complex-valued signals of any data type. All the inputs must be of the same data type. The output data type is the same as the input data type.

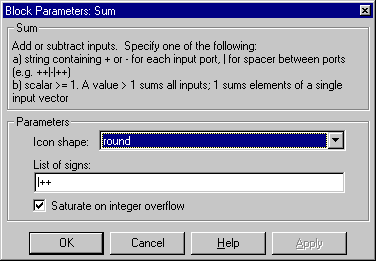

Parameters and Dialog Box

Icon shape: You can choose a circular or rectangular shape for the Sum block in the Icon shape drop box. If the Sum block has multiple inputs, it may be more convenient to have a circular shape than a rectangular shape.
List of signs: The List of signs parameter can have a constant or a combination of +, -, and | symbols. Specifying a constant causes Simulink to redraw the block with that number of ports, all with positive polarity. A combination of plus and minus signs specifies the polarity of each port, where the number of ports equals the number of symbols used.; The Sum block draws plus and minus signs beside the appropriate ports and redraws its ports to match the number of signs specified in the List of signs parameter. If the number of signs is changed, ports are added or deleted from the icon. If necessary, Simulink resizes the block to show all input ports. You can also manipulate the position of the input ports by inserting spacers (|) between the signs in the List of signs parameter. The spacers create extra space between the ports. For example, ++|-- will create an extra space between the second + port and the first - port:
Saturate on integer overflow: If selected, this option causes the output of the Sum block to saturate on integer overflow. In particular, if the output data type is an integer type, the block output is the maximum value representable by the output type or the computed output, whichever is smaller in the absolute sense. If the option is not selected, Simulink takes the action specified by Data overflow event option on the Diagnostics page of the Simulation Parameters dialog (see The Diagnostics Pane).

Characteristics

Direct Feedthrough
Yes

Sample Time
Inherited from driving blocks

Scalar Expansion
Yes

States
0

Dimensionalized
Yes

Zero Crossing
No

Direct Feedthrough	Yes
Sample Time	Inherited from driving blocks
Scalar Expansion	Yes
States	0
Dimensionalized	Yes
Zero Crossing	No
