Ramp (Using Simulink)

Generate constantly increasing or decreasing signal.

Library

Sources

Description

The Ramp block generates a signal that starts at a specified time and value and changes by a specified rate. The block's Slope, Start time, Duty Cycle, and Initial output parameters determines the characteristics of the output signal. All must have the same dimensions after scalar expansion.

Data Type Support

A Ramp block outputs signals of type double.

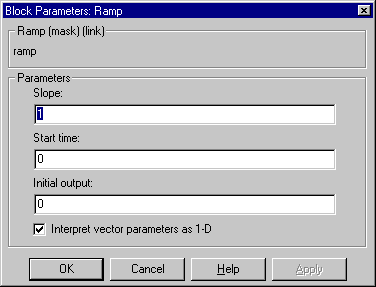

Parameters and Dialog Box

Slope: The rate of change of the generated signal. The default is 1.
Start time: The time at which the signal begins to be generated. The default is 0.
Initial output: The initial value of the signal. The default is 0.
Interpret vector parameters as 1-D

If this option is checked and the other parameters are one-row or one-column matrices, after scalar expansion, the block outputs a 1-D signal (vector). Otherwise the output dimensionality is the same as that of the other parameters.

Characteristics

Sample Time
Inherited from driven block

Scalar Expansion
Yes

Dimensionalized
Yes

Zero Crossing
Yes

Sample Time	Inherited from driven block
Scalar Expansion	Yes
Dimensionalized	Yes
Zero Crossing	Yes
