Complex to Real-Imag (Using Simulink)

Output the real and imaginary parts of a complex input signal.

Library

Math

Description

The Complex to Real-Imag block accepts a complex-valued signal of any type. It outputs the real and/or imaginary part of the input signal, depending on the setting of the Output parameter. The real outputs are of the same data type as the complex input. The input may be an array (vector or matrix) of complex signals, in which case the output signals are arrays of the same dimensions. The real array contains the real parts of the corresponding complex input elements. The imaginary output similarly contains the imaginary parts of the input elements.

Data Type Support

See the description above.

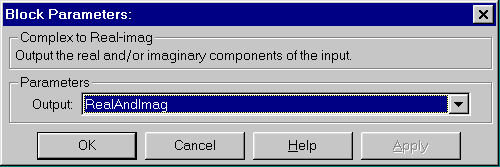

Parameters and Dialog Box

Output: Determines the output of this block. Choose from the following values: RealAndImag (outputs the input signal's real and imaginary parts), Real (outputs the input's real part), Imag (outputs the input's imaginary part).

Characteristics

Direct Feedthrough
Yes

Sample Time
Inherited from driving block

Scalar Expansion
No

Dimensionalized
Yes

Zero Crossing
No

Direct Feedthrough	Yes
Sample Time	Inherited from driving block
Scalar Expansion	No
Dimensionalized	Yes
Zero Crossing	No
