daqpropedit: A Graphical Property Editor

The toolbox provides the Data Acquisition Property Editor, which is a graphical user interface (GUI) for accessing properties. You launch the property editor with the daqpropedit function. The GUI is designed so that you can:

• List all existing device objects as well as the channels or lines they contain.
• Configure property values.
• Display the names and current values for configurable properties.
• Display property characteristics.
• Display property help.

For example, to configure property values for the analog input object ai using daqpropedit

ai = analoginput('winsound');
addchannel(ai,1:2);
daqpropedit(ai)

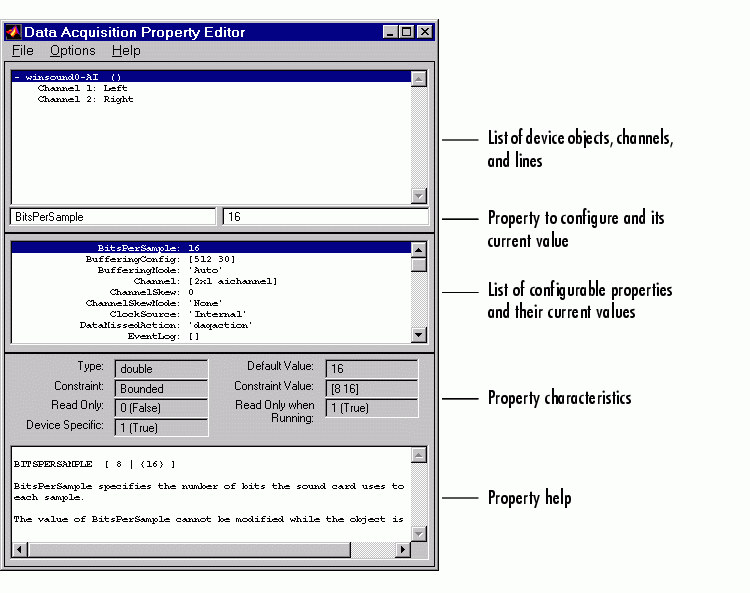

The Data Acquisition Property Editor is shown below.
