Notes for the lecture on Wednesday November 7
Evolution of the atmosphere and the rise of oxygen
Evolution of the Atmosphere and the rise of oxygen

Link to powerpoint slides of David Catling's lecture: here.

Earth is the only planet in the solar system whose atmosphere contains substantial amounts of O2.  The atmospheres of Venus and Mars are primarily composed of CO2.  Jupiter and Saturn have massive atmospheres consisting mainly of highly reduced gases like methane and ammonia, which would be quickly oxidized if sufficient amounts of oxygen were present.

The earth system can be characterized as being highly oxidized relative to the other planets.  Reactive metals such as iron in the earth's crust and outer mantle exist in highly oxidized states like Fe2O3.  Hydrogen is only a trace element in the atmosphere, as are quickly oxidized hydrogen compounds methane and ammonia.  Carbon monoxide, which is also readily oxidized, is present only in trace amounts.  Solid material containing organic carbon doesn't last long unless it's buried.  Hence, there appears to be plenty of free oxygen in the earth system to have oxidized everything that's readily oxidizable.

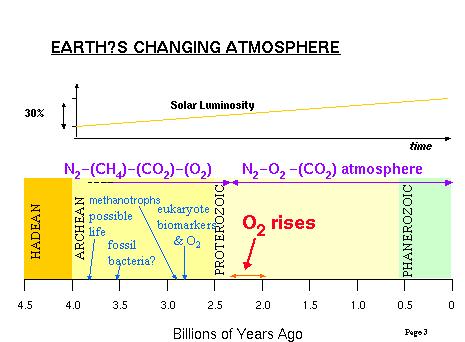

Figure 1. The composition of the Earth's atmosphere has changed over the last few billion years. [Figure from David Catling's lecture in class]

Evidence for the rise of oxygen
It's clear that this wasn't always the case in the earth's history. The oldest fully oxidized soils and 'red beds' (reddish colored sandy soils and sediments containing ferric (fully oxidized) iron oxide) date back to 2.2 billion years ago.  Banded iron formations, which contain ferrous (only partially oxidized) iron stopped forming around 1.9 billion years ago. Evidence based on the ages of uranium oxides and iron pyrite (FeS2) is consistent with these dates.  From this evidence it can be inferred that prior to about 2 billion years ago, the atmosphere cannot have contained more than a few percent of the amount of oxygen that it contains today, and that the buildup of oxygen, when it finally occurred, was rapid.

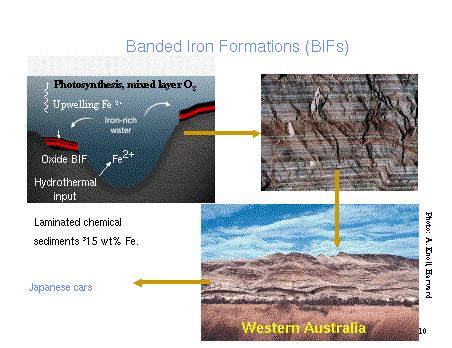

Figure 2. Banded Iron Formations

Where did all the oxygen come from?
For every molecule of oxygen currently residing in the atmosphere there are about 10 molecules tied up in oxidized compounds in the earth system (metal oxides, carbonates, and sulfates).  Where did all this oxygen come from? Some oxygen can be generated by the photochemical reactions depicted in Fig. 9-1, but nowhere enough to account for the amount currently observed in the earth system. Scientists are convinced that the same photosynthesis reaction that we studied in connection with the carbon cycle must have been the major source.

The prebiotic atmosphere (i.e., the atmosphere that existed before the advent of life) was substantially different from today's atmosphere. It was composed mainly of carbon dioxide and nitrogen.  It may have been as much as ten times as massive as the present atmosphere.  For specifics, see Table 1 in the text Table 9-1.

Dating of microfossils of single celled bacteria indicate that the first life forms on this planet -- single celled bacteria -- and the presence of organic carbon indicates that life originated very early in the earth's history-- around (or before) 4 billion years ago -- just as soon as the intevals between the bombardment by asteroid size objects became long enough to permit it to happen.

Life as a source of oxygen
Scientists are still debating just how life began. Perhaps the dominant 'school of thought' is that it evolved from self replicating RNA molecules. A competing theory is that life was introduced into the earth system by interplanetary dust particles originating in extremely cold (10 K) interplanetary dust clouds which provide a favorable environment for the evolution and survival of complex organic molecules.  [Interest in this possibility has spawned the Astrobiology Program here at UW.] A third theory is that life originated in or near hydrothermal vents in the mid-ocean spreading ridges, where water is rich in reduced compounds FeS and H2S.  Fossil evidence indicates that by 3.5 billion years ago life had evolved to the point where blue green algae capable of photosythesis were widespread in the oceans.  Terrestrial organisms (life on land) didn't come until much later.

Why did it take so long for oxygen levels in the atmosphere to rise?
The geological evidence suggests that once life was established in the world ocean, photosynthesis began producing oxygen at rates comparable to those observed today.  Why did it take something like 1.5 billion years before atmospheric oxygen levels to begin their sharp rise to levels comparable to those observed today?  Because oxygen, being a highly reactive gas, did not begin to accumulate in the form of O2 until it had reacted with (i.e., oxidized) all the compounds that it comes into contact with in the earth system: i.e., the atmospheric gases methane, carbon monoxide and H2 and the minerals in the earth's crust and mantle.  [To get an idea of how massive the mantle is see Fig. 1-10 on p. 110 of the text.] Reactive metals like iron were converted to oxides; sulfides were converted into sulfates.  The formation of calcium carbonate (limestone) takes up oxygen atoms.  Why do scientists think minerals in the earth's mantle were oxidized as well?  Because if they were not highly oxidized, volcanic emissions emenanting from the mantle would contain larger fractions of reduced gases than they do today.  How could minerals deep in the earth's mantle have been oxidized?  By the recycling of water through the mantle. Hydrated (water containing) sediments in the crust get subducted.  As the material heats up the water boils off.  Some of this steam oxidizes ferrous oxide in the mantle, releasing free hydrogen.  The hydrogen and the remaining steam are eventually released in volcanic eruptions and the hydrogen escapes to space.

The role of hydrogen escape as a source of oxygen
The slow escape of hydrogen molecules to space over the lifetime of the earth is an important factor in the evolution of the earth system.  Of the gases in the earth's atmosphere, only hydrogen and helium are light enough to escape in appreciable amounts.  As hydrogen escapes, oxygen that might otherwise be bound up in water molecules and/or used to oxidize methane (CH4) and ammonia (NH3) is freed up.  Venus is believed to have lost all its hydrogen (and hence its water) because it is too hot.  Jupiter and Saturn have lost none of their hydrogen because they are too cold, and therefore their atmospheres are full of highly reduced gases methane and ammonia.  As in the Goldilocks fable, the temperature of the earth is just right so that the escape of hydrogen was fast enough free up oxygen but not large enough to produce significant losses of water.

Oxygen and the carbon cycle
From the photosynthesis reaction

CO2+ H20  --> CH20 +O2

it is evident that for each molecule of oxygen that is produced a carbon atom must be buried (as part of an organic carbon molecule) in sedimentary rock. Hence the amount of carbon in this reservoir is a measure of the net production of O2 over the lifetime of the earth.  Based on estimates of the size of the organic carbon reservoir, this amount is large enough to account for the reactions listed in the previous paragraph.

The formation of the ozone layer
The buildup of oxygen in the earth's atmosphere led to the formation of the ozone layer (ozone has three oxygen atoms, and its chemical formula is O3).  Chemical models indicate that shouldn't have taken very much O2 (perhaps as little as a percent of the levels observed today) for photochemical processes in the stratosphere to produce an ozone layer thick enough to shield life on the surface of the planet from the harmful effects of UV radiations described in Fig. 9-12 and the accompanying discussion in the text.  The other planets don't have ozone layers because their atmospheres don't contain appreciable amounts of oxygen.  The specifics of how the ozone layer was formed and how it is constantly being renewed are reserved for Chapter 14.

Present level of oxygen in the atmosphere: trial by fire
Just how far back in the earth's history oxygen levels rose to their present values is difficult to say.  During the past 360 million years, when forests and occasional forest fires are known to have existed more or less continuously, oxygen levels cannot have exceeded 35% (the level at which recurrent fires would have destroyed them, and they cannot have dropped below 13% (the level below which fires could not have been prevalent enough to account for the amount of burned material evident in the fossil remains of trees).  Just why oxygen levels have remained within this range for such a long time is not fully understood.


Review Questions

  • Describe the composition of the earth's atmosphere as it was thought to exist before the advent of life.  What is this assessment based on?
  • Describe this evolution of oxygen levels in the earth's atmosphere. What is the evidence in support of this view?
  • How does the amount of O2 in today's atmosphere compare with the amount that has been produced by photosynthesis over the lifetime of the earth? Where did the O2 produced by photosynthesis that is not still in the atmosphere end up?
Critical Thinking Questions

1) How could life have existed on earth prior to the formation of the ozone layer?

2) Does the burning of fossil fuels affect atmospheric oxygen?

3) Does the destruction of tropical rainforests menace the supply of atmospheric oxygen?
We discussed this question in class. Tropical rainforests are not a net source of oxygen because most of the O2 produced during the production of organic carbon by photosynthesis is eventually consummed by oxidation of this organic carbon by respiration and decay (which both consume oxygen). So the answer is no: destroying rainforests will not affect O2.



4) A developer in Amazonia has a plan to raise the levels of atmospheric oxygen by cutting down the rainforest and replacing it with a managed forest. The managed forest would be cut every 20 years, the cut trees would be sealed in plastic bags loaded with weights, and the bags would be dumped to the bottom of the ocean. What is the developer's reasoning? Would the plan work? Why or why not?
This is another question we discussed in class.  The reasoning of the developper is that cutting down mature trees and sealing them against oxidation will prevent O2 generated during the growth of these trees to be consumed by oxidizing organic carbon when the tree decays. So, yes, O2 levels would increase in theory.  The problem in this reasoning is that the developer would have gone through a lot of effort for a very small result: the increase in O2 will be limited by the amount of atmospheric CO2 available for photosynthesis. Atmospheric CO2 makes up only 0.036% of atmospheric composition, while O2 is 21%. So atmospheric CO2 is less than 0.2% of atmospheric O2 (0.036/21*100).  The plan would not work.


5) Do you expect atmospheric O2 to have a seasonal cycle? Why? How large would it be?
Answer. In the same way as CO2 has a seasonal cycle due to photosynthesis and respiration (Fig. 7-4), so does O2.  The source of O2 from photosynthesis is limited to spring and summer, while the sink of O2 by oxidation of dead biomass is more evenly spread during the year.  The seasonal cycle for O2 (increase in spring and summer/decrease in fall and winter) is thus the reverse of that of CO2 since the source of O2 is a sink of CO2 and vice versa.
Fig. 7-4 shows us the seasonal cycle of CO2 at Mauna Loa in Hawaii.  The amplitutude of the variation (difference between maximum and minimum CO2 over a year) is close to 5 parts per million.  The same amplitude should apply to O2.
A little more fuel for thought (for those of you who are interested): For CO2 this is a significant seasonal cycle, corresponding to a 5 ppm/365 ppm x 100 = 1% variation. For O2 which is much more abundant, this only corresponds to a tiny perturbation.  If we convert 21% to ppmv, we find that the concentration of O2 is 21/100x106=210,000 ppm, and thus the seasonal variation represents only a change by 5/210,000x100=0.002%.
